€1,010.00 ex.VAT
Ideal For: Server, network, VoIP and telecommunication applications

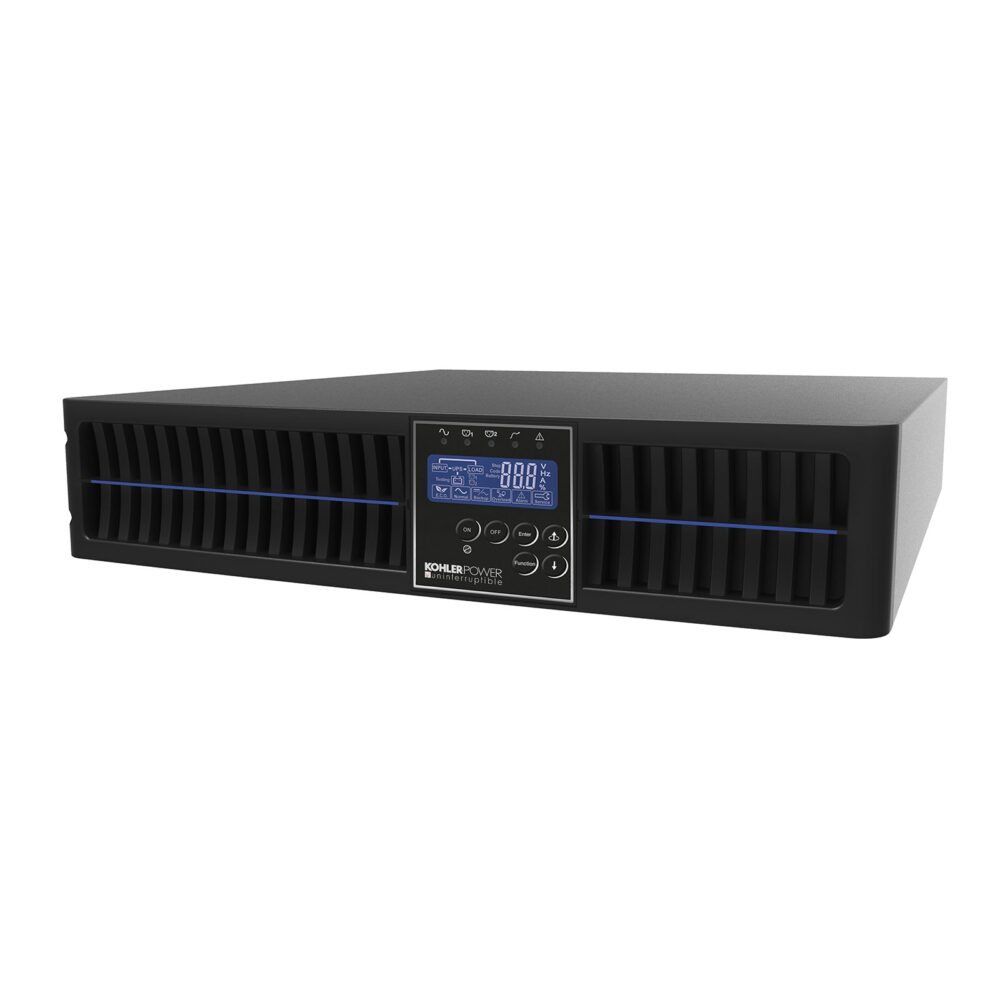

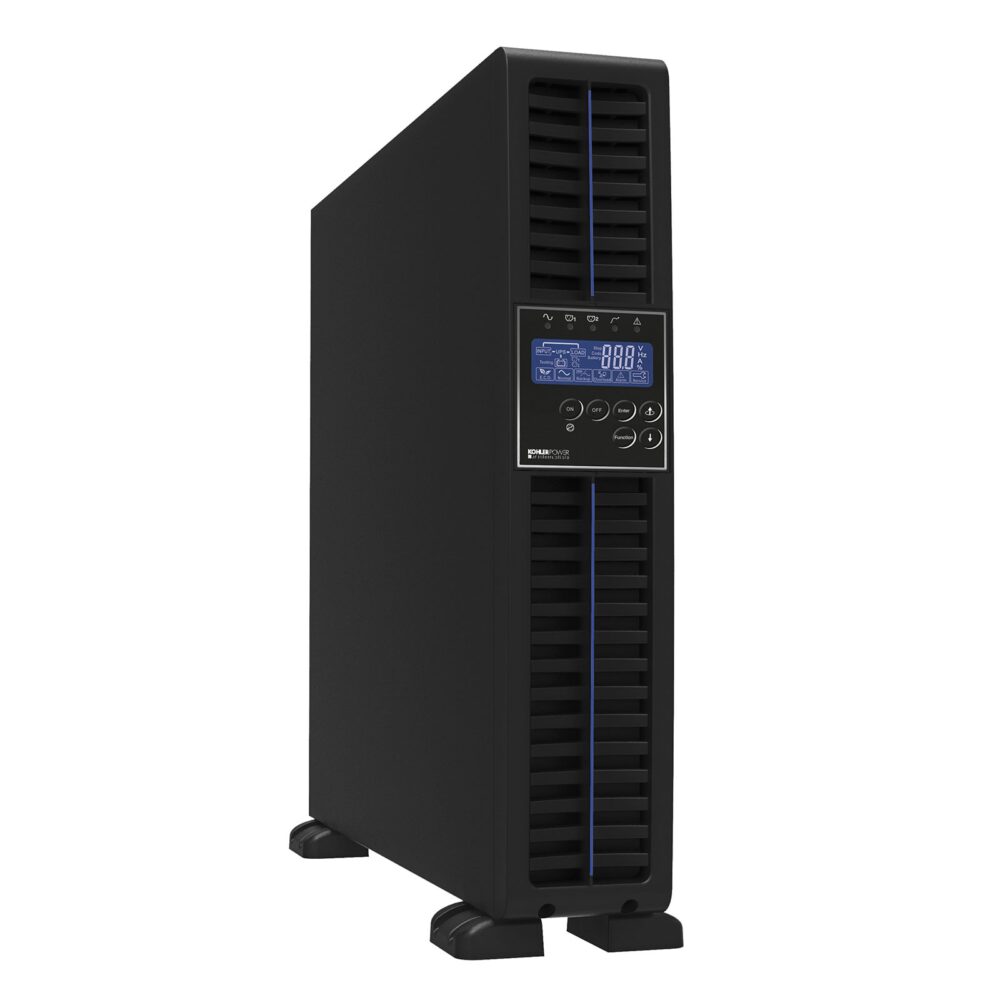

Single-phase UPS system for server, network, VoIP and telecommunication applications. Combines high reliability with low set-up costs for mission critical environments that demand future flexibility and excellent return on investment. Available in a compact tower or 19″ rack-mountable unit with modular batteries for increased power output.
Lead time: 1 – 2 weeks, but many items are in stock and once ordered we will contact you to arrange delivery.
Robust uninterruptible power supply with hot swappable batteries and advanced battery discharge management.
UPS replacement batteries for fast upgrades with no downtime and no interruption to the critical load. Provides 24/7 power protection for demanding IT environments.
The KOHLER PW 1000 uninterruptible power supply automatically manages the end-discharge voltage of the internal batteries, preventing deep discharge during power failures. Maintenance bypass switch allows for UPS system to be isolated manually.
Automatic (6–10kVA) redundant parallel operation providing remarkable reliability with option to increase load and protection levels by connecting up to four additional units.
The KOHLER PW 1000 delivers high efficiency of up to 94% (98% in eco-mode).
High operating efficiency provides 1.0 input power as well as <7% input current THDi to reduce running costs.
| Weight | 30 kg |
|---|---|
| Actual kVA | 2kVA |
| Type | Single-phase |
| Rated output voltage range | 220/230/240V single-phase |
| Working mode | Online double conversion |
| Efficiency | Up to 98% (Eco Mode) |
| Maintenance bypass | Standard |
| Network/web interface | Option |
| Volt free contacts | Optional |
| Input current distortion THDi @100% load | < 6% |
| Input power factor @100% load | 0.99 |
| Hot-swappable modules | No |
| Transformerless | Yes |
| Standalone / Modular | Tower or Rack Mounted |
| Installation | 1, 2 and 3kVA units have a standard 13-amp UK plug fitted. |
| Dimensions – mm | 1kVA W440 x D405 x H88 (2U) |
See below current pricing for the KOHLER PW 1000 UPS range and accessories.
| Model No | Output Power | Autonomy (min) | Dimensions in mm (HxWxD) | Weight | Unit Price (€) |
|---|---|---|---|---|---|
| PW1000/1 | 1kVA | 6 | 89 x 445 x 405 (2U) | 17 | €502 |
| PW1000/2 | 2kVA | 6 | 89 x 445 x 680 (2U) | 30 | €1010 |
| PW1000/3 | 3kVA | 6 | 89 x 445 x 680 (2U) | 33 | €1090 |
| PW1000/6 | 6kVA | 14 | 222 x 445 x 680 (5U) | 100 *1) | €2429 |
| PW1000/10 1/1 | 10 kVA | 7 | 267 x 445 x 680 (6U) | 106 *3) | €3521 |
| Model No | Additional backup | Dinensions in mm (HxWxD) | Weight | Unit Price (€) |
|---|---|---|---|---|
| PWBAT-9-6 | 1kVA only, additional 50 minutes backup | 89 x 445 x 680 (2U) | 44 | €394 |
| PWBAT-9-12 | 2kVA only, additional 22 minutes backup | 89 x 445 x 680 (2U) | 44 | €667 |
| PWBAT-9-12 | 3kVA only, additional 16 minutes backup | 89 x 445 x 680 (2U) | 44 | €667 |
| PWBAT-9-20 | 6kVA only, additional 13 minutes backup | 133 x 445 x 680 (3U) | 82 | €1051 |
| PWBAT-9-20 | 10 kVA only, additional 7 minutes backup | 133 x 445 x 680 (3U) | 82 | €1051 |
| Model No | Description | Unit Price (€) |
|---|---|---|
| PW1000/RMK | Rack mounting kit | €62 |
| PW1000/RC | Relay card with 6 dry contacts (to be installed in SNMP slot) | €62 |
| CS121sc | SNMP Adapter card | €404 |
| PW1000-MBP 3kVA | Bypass module, 1 - 3kVA | €185 |
| PW1000-MBP 10kVA | Bypass module, 6 - 10kVA | €531 |
*1) = composed of 1 x UPS (2U, 18.5kilos) and 1 x battery cabinet (3U, 61 kg)
*2) = composed of 1 x UPS (3U, 21.5kilos) and 1 x battery cabinet (3U, 61 kg)
