KOHLER PW 1000 6kVA

KOHLER PW 1000 6kVA

2,429.00 ex.VAT

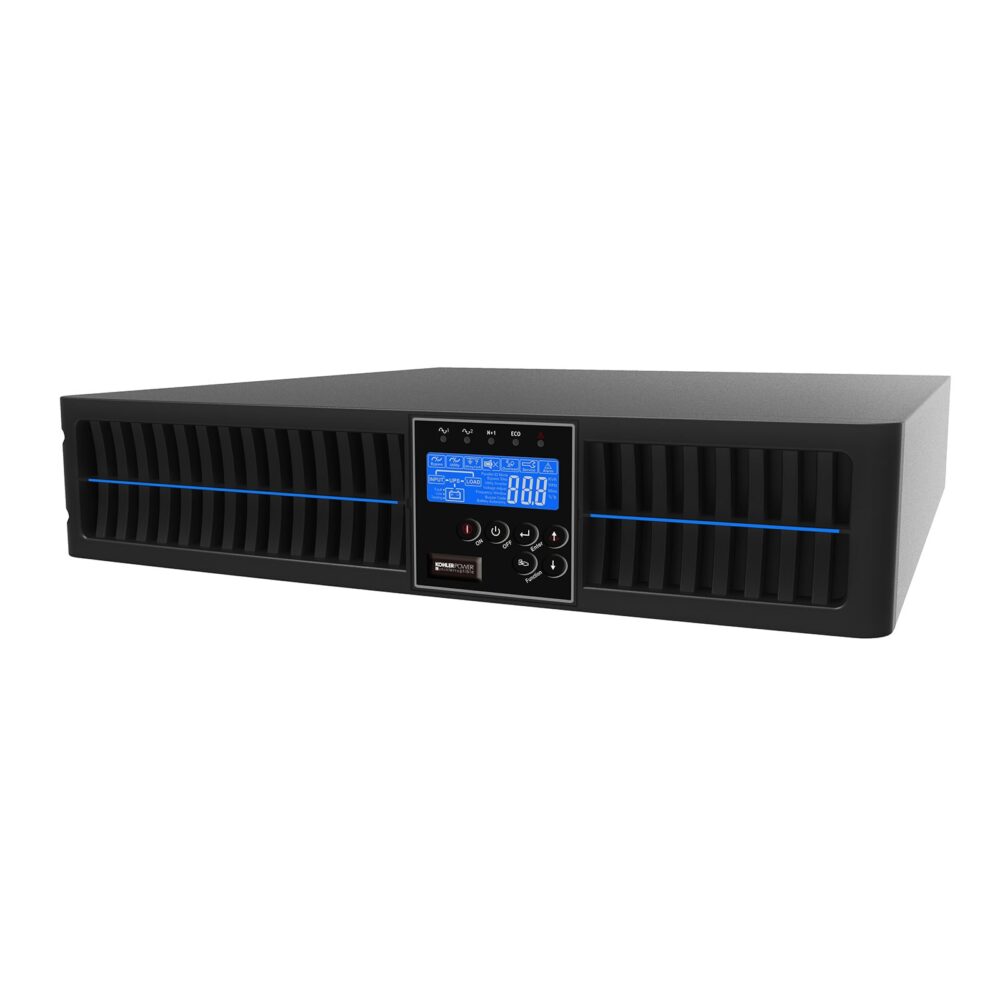

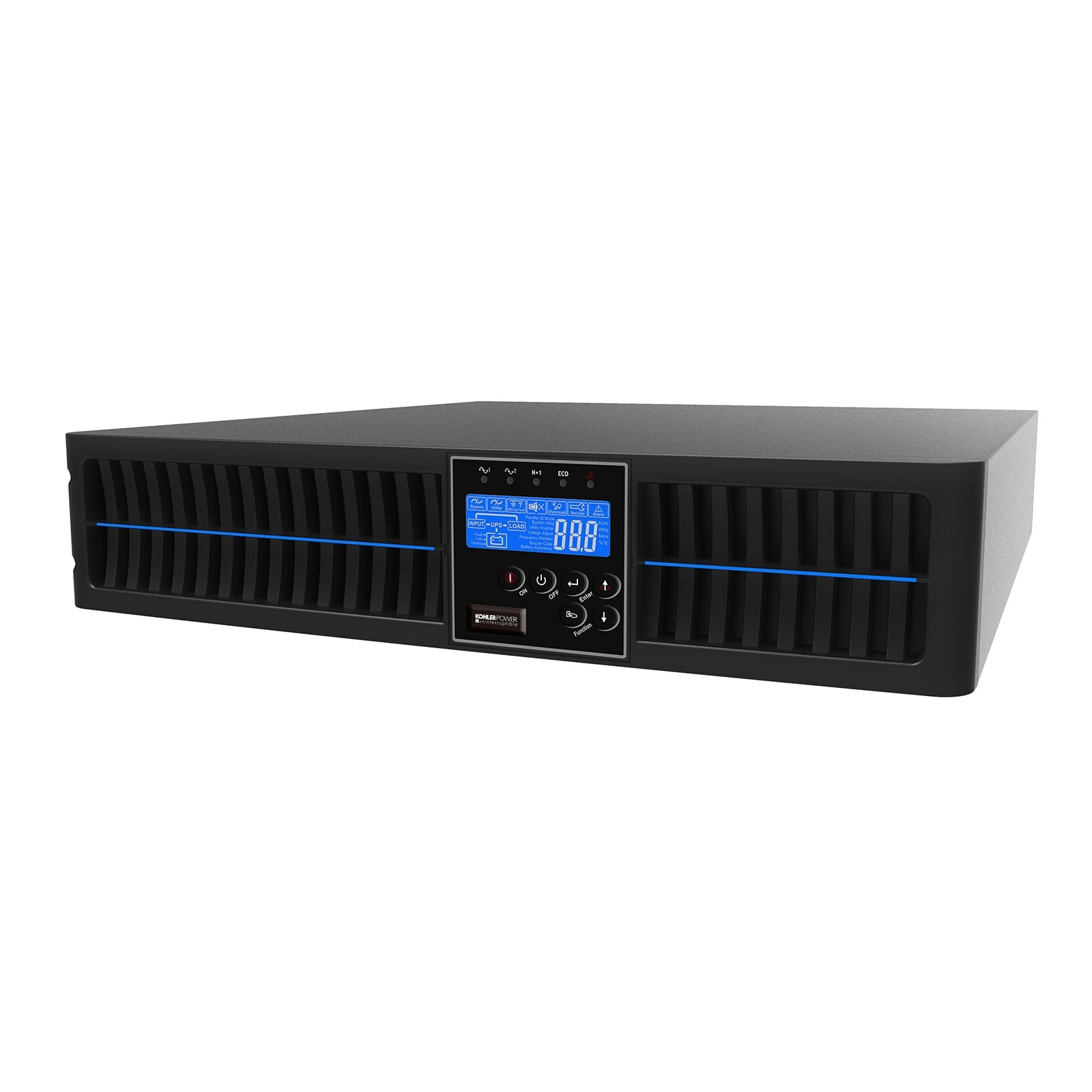

6kVA, Single-Phase, Rack Mounted or Standalone

Ideal For: Server, network, VoIP and telecommunication applications

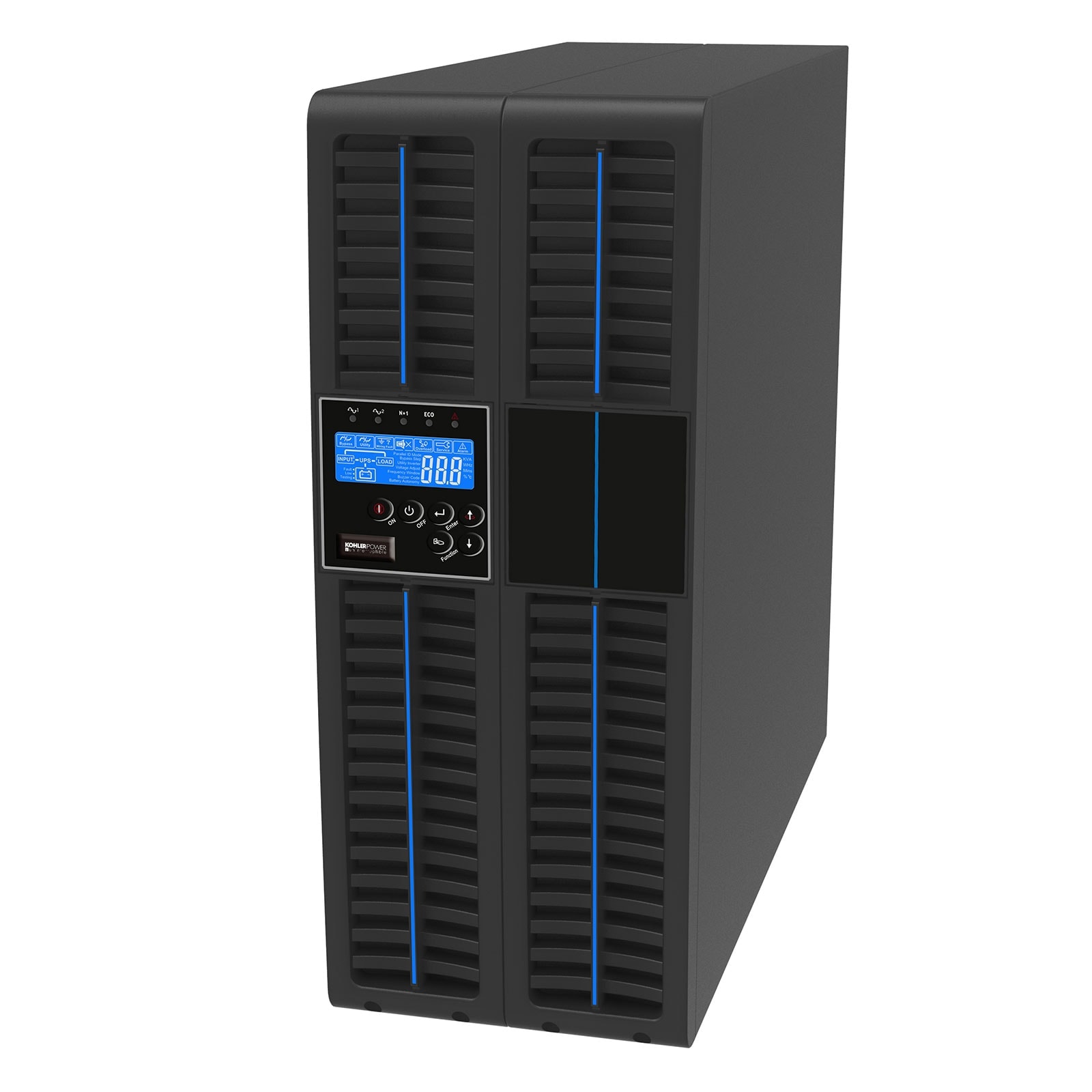

Single-phase UPS system for server, network, VoIP and telecommunication applications. Combines high reliability with low set-up costs for mission critical environments that demand future flexibility and excellent return on investment. Available in a compact tower or 19″ rack-mountable unit with modular batteries for increased power output.

Lead time: 1 – 2 weeks, but many items are in stock and once ordered we will contact you to arrange delivery.

Optional external battery cabinets are available to increase the UPS autonomy time. The battery cabinet design complements the UPS cabinet and the two cabinets can be mechanically connected together to form a single unit when installed as a tower system. Up to three external battery cabinets can be connected in tandem as part of the UPS System. See the “Pricing” tab below for autonomy information.

External, rack mounted Maintenance Bypass switch to provide continuous power without shutting down the connected loads during maintenance or battery replacement.

19” support rails for the KOHLER PW 1000 1 – 10kVA rack mountable model.

The Relay Card provides a set of relay contacts for managing UPS alarm notifications and operating states.

The SNMP Card allows the UPS to be directly connected over LAN 10/100 Mb connections to be managed using the main network communications protocols. It was developed to provide a high level of reliability in communication between the UPS and associated management systems.

More Information

Robust uninterruptible power supply with hot swappable batteries and advanced battery discharge management.

Hot-swappable batteries

UPS replacement batteries for fast upgrades with no downtime and no interruption to the critical load. Provides 24/7 power protection for demanding IT environments.

Advanced battery discharge

The KOHLER PW 1000 uninterruptible power supply automatically manages the end-discharge voltage of the internal batteries, preventing deep discharge during power failures. Maintenance bypass switch allows for UPS system to be isolated manually.

High reliability

Automatic (6–10kVA) redundant parallel operation providing remarkable reliability with option to increase load and protection levels by connecting up to four additional units.

Low cost of ownership

The KOHLER PW 1000 delivers high efficiency of up to 94% (98% in eco-mode).
High operating efficiency provides 1.0 input power as well as <7% input current THDi to reduce running costs.

View the Refund Policy for Online Purchases here.

Technical Specification

Weight 100 kg
Actual kVA 6kVA
Type Single-phase
Max. power per frame with N+1 redundancy Up to 10kVA
Parallelable up to 4 x UPS units
Rated output voltage range 220/230/240V single-phase
Working mode Online double conversion
Efficiency Up to 98% (Eco Mode)
Maintenance bypass Standard
Network/web interface Option
Volt free contacts Optional
Input current distortion THDi @100% load < 6%
Input power factor @100% load 0.99
Scalable (N+1) Yes (horizontal)
Hot-swappable modules No
Transformerless Yes
Standalone / Modular Standalone, Rackmounted
Installation 6kVA and above units require a hardwired electrical connection – please ensure this is installed with accordance to BS 7671.
Dimensions – mm W440 x D680 x H88 (no batteries)

Range Pricing

See below current pricing for the KOHLER PW 1000 UPS range and accessories.

Model NoOutput PowerAutonomy (min)Dimensions in mm (HxWxD)WeightUnit Price (€)
PW1000/11kVA689 x 445 x 405 (2U)17€502
PW1000/22kVA689 x 445 x 680 (2U)30€1010
PW1000/33kVA689 x 445 x 680 (2U)33€1090
PW1000/66kVA14222 x 445 x 680 (5U)100 *1)€2429
PW1000/10 1/110 kVA7267 x 445 x 680 (6U)106 *3)€3521

Additional Battery Cabinets

Model NoAdditional backupDinensions in mm (HxWxD)WeightUnit Price (€)
PWBAT-9-61kVA only, additional 50 minutes backup89 x 445 x 680 (2U)44€394
PWBAT-9-122kVA only, additional 22 minutes backup89 x 445 x 680 (2U)44€667
PWBAT-9-123kVA only, additional 16 minutes backup89 x 445 x 680 (2U)44€667
PWBAT-9-206kVA only, additional 13 minutes backup133 x 445 x 680 (3U)82€1051
PWBAT-9-2010 kVA only, additional 7 minutes backup133 x 445 x 680 (3U)82€1051

Options

Model NoDescriptionUnit Price (€)
PW1000/RMKRack mounting kit€62
PW1000/RCRelay card with 6 dry contacts (to be installed in SNMP slot)€62
CS121scSNMP Adapter card€404
PW1000-MBP 3kVABypass module, 1 - 3kVA€185
PW1000-MBP 10kVABypass module, 6 - 10kVA€531

*1) = composed of 1 x UPS (2U, 18.5kilos) and 1 x battery cabinet (3U, 61 kg)
*2) = composed of 1 x UPS (3U, 21.5kilos) and 1 x battery cabinet (3U, 61 kg)
